Jointfill N1

Jointfill N1 is a polymer modified, bituminous, hot applied joint sealant compound. It is designed to be tough, flexible and have good extension properties over a wide range of ambient temperatures. Jointfill N1 is suitable for joints between concrete and bituminous surfacing preventing entry of water and other materials. It has excellent recovery properties and low temperature flexibility.

Collect from your local depot tomorrow for free or next day delivery from £15. Learn more about delivery

£34.79
decrease increase

Jointfill N1 is not recommended for overbanding due to its lack of skid resistance. Jointgrip OB is recommended for overbanding due to its superior skid resistance properties.

  • Carriageways
  • Runways
  • Motorways
  • Footways

Damaged joints must be repaired using an epoxy mortar approved by Colas. If necessary joints should also be treated by grit blasting. Joints and cracks should always be thoroughly cleaned and dried with a hot compressed air lance in order to remove all moisture and dirt. This process should be carried out immediately prior to the application of Jointfill N1.



Concrete joints should be primed with CP Primer before applying Jointfill N1.

Jointfill N1 should be heated indirectly and agitated in a purpose-built sealant preheater unit with thermostatic control. Ensuring that the temperature does not exceed 190°C. The heater unit should be air-jacketed or oil-jacketed. The materials should then be pumped in to the joint, or poured at temperatures between 170-190°C using a melter pourer or bucket with a 'V' lip, with the minimum loss of temperature. Joints should be sealed to a level of at least 3mm below the surface.



Application Properties

Pouring temperature170°C - 190°C
Safe heating temperature185°C for 6 hours maximum. 190°C maximum temperature



Weight of Jointfill N1 Sealant to fill 100m joint (kg)



Depth of joint (mm)Width of joint (mm)
152025303540
20354658708193
25--7287101116
30----122139
35----142162
40-----185

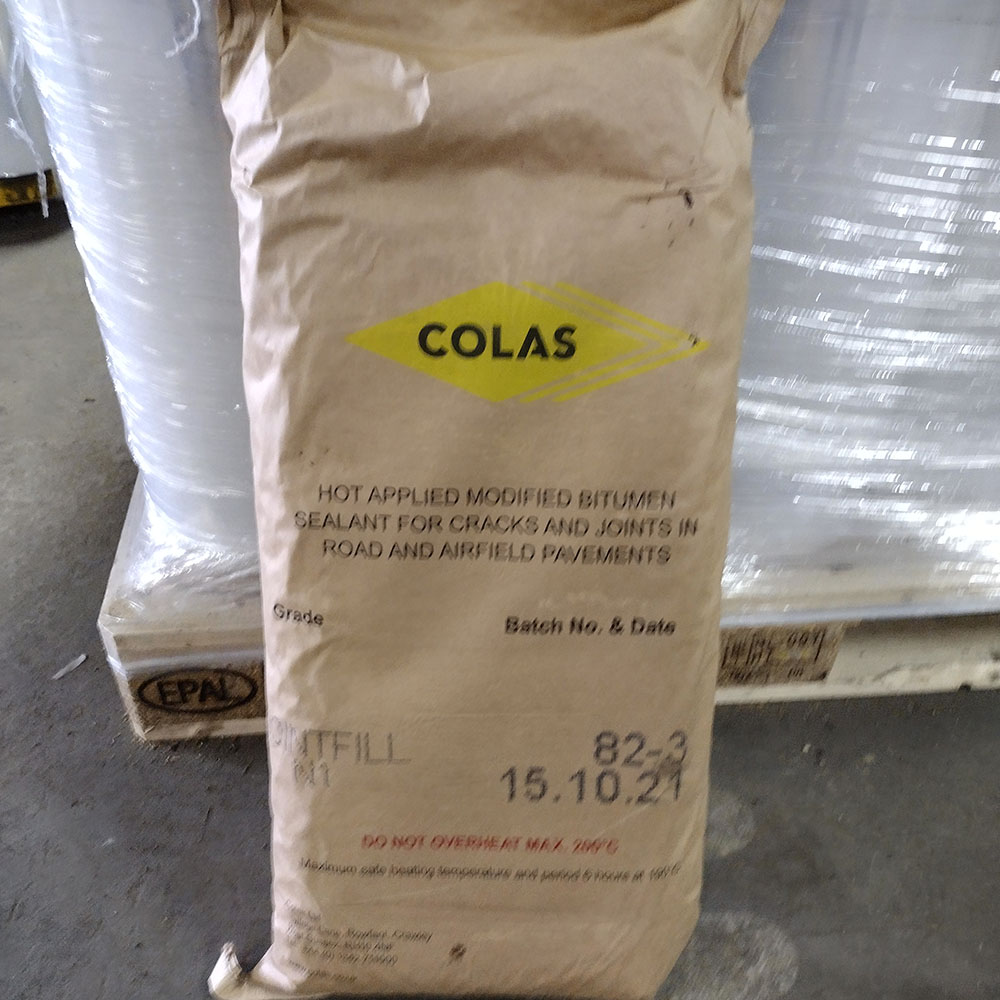

Jointfill N1 is available in plastic lined papersacks holding 15kg (nominal). Remove the paper and load into heating equipment.

Keep in dry store under cover.

Jointfill N1 is manufactured on a purpose-built plant to an ISO 9001 quality system which covers all Colas manufactured products. Under this system all batches undergo rigorous QC testing before being released for use. Jointfill N1 complies with the specification given BS EN14188-1:2004 Joint Fillers and Sealants – specifications for hot applied sealants for a Type N1 Sealant.



Test NameMethodSpecification
Softening point (Ring and Ball)BS EN 1427≥85 °C
Cone penetration (25°C, 150g, 5s)BS EN 13880-240 to 130dmm
Resilience (25°C, 75g, 5s)BS EN 13880-3≥60%
Flow resistance (60°C, 5h, 75%)BS EN 13880-5<2mm
Extension test: 3 cycles of extension to 75% at a rate of 6mm/hr @ -20°CBS EN 13880-10Pass 3 cycles
DensityBS EN 13880-1Typically 1.015g/cm3@ 25°C



SAFETY HANDLING PRECAUTIONS (when hot)



  • Wear suitable protective clothing (heat resistant gauntlet glove, overalls, protective footwear, face visor).
  • DO NOT allow water to contact hot material.
  • DO NOT exceed maximum safe heating temperature.
  • If molten material contacts skin:
    • DO NOT attempt to remove.
    • Immerse affected area in cold running water for at least 10 minutes.
    • Seek medical advice without delay.



This product is hazardous for transportation when carried at temperatures above 100°C.



For full safety information, please request the Jointfill N1 Safety Data Sheet 06 using the contact information at the back of this brochure.

Jointfill N1 is not recommended for overbanding due to its lack of skid resistance. Jointgrip OB is recommended for overbanding due to its superior skid resistance properties.

  • Carriageways
  • Runways
  • Motorways
  • Footways

Damaged joints must be repaired using an epoxy mortar approved by Colas. If necessary joints should also be treated by grit blasting. Joints and cracks should always be thoroughly cleaned and dried with a hot compressed air lance in order to remove all moisture and dirt. This process should be carried out immediately prior to the application of Jointfill N1.



Concrete joints should be primed with CP Primer before applying Jointfill N1.

Jointfill N1 should be heated indirectly and agitated in a purpose-built sealant preheater unit with thermostatic control. Ensuring that the temperature does not exceed 190°C. The heater unit should be air-jacketed or oil-jacketed. The materials should then be pumped in to the joint, or poured at temperatures between 170-190°C using a melter pourer or bucket with a 'V' lip, with the minimum loss of temperature. Joints should be sealed to a level of at least 3mm below the surface.



Application Properties

Pouring temperature170°C - 190°C
Safe heating temperature185°C for 6 hours maximum. 190°C maximum temperature



Weight of Jointfill N1 Sealant to fill 100m joint (kg)



Depth of joint (mm)Width of joint (mm)
152025303540
20354658708193
25--7287101116
30----122139
35----142162
40-----185



Jointfill N1 is available in plastic lined papersacks holding 15kg (nominal). Remove the paper and load into heating equipment.

Keep in dry store under cover.

Jointfill N1 is manufactured on a purpose-built plant to an ISO 9001 quality system which covers all Colas manufactured products. Under this system all batches undergo rigorous QC testing before being released for use. Jointfill N1 complies with the specification given BS EN14188-1:2004 Joint Fillers and Sealants – specifications for hot applied sealants for a Type N1 Sealant.



Test NameMethodSpecification
Softening point (Ring and Ball)BS EN 1427≥85 °C
Cone penetration (25°C, 150g, 5s)BS EN 13880-240 to 130dmm
Resilience (25°C, 75g, 5s)BS EN 13880-3≥60%
Flow resistance (60°C, 5h, 75%)BS EN 13880-5<2mm
Extension test: 3 cycles of extension to 75% at a rate of 6mm/hr @ -20°CBS EN 13880-10Pass 3 cycles
DensityBS EN 13880-1Typically 1.015g/cm3@ 25°C



SAFETY HANDLING PRECAUTIONS (when hot)



  • Wear suitable protective clothing (heat resistant gauntlet glove, overalls, protective footwear, face visor).
  • DO NOT allow water to contact hot material.
  • DO NOT exceed maximum safe heating temperature.
  • If molten material contacts skin:
    • DO NOT attempt to remove.
    • Immerse affected area in cold running water for at least 10 minutes.
    • Seek medical advice without delay.



This product is hazardous for transportation when carried at temperatures above 100°C.



For full safety information, please request the Jointfill N1 Safety Data Sheet 06 using the contact information at the back of this brochure.
